D2F-01FL

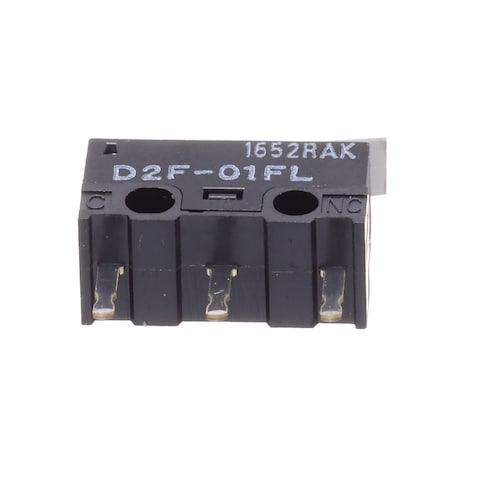

Name: Omron D2F-01FL
Brand: Omron Electronics
SKU: 653-D2F-01FL
Price: 1.44 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-D2F-01FL

Mfr. No:

D2F-01FL

Mfr.:

Omron Electronics

Description:

Basic / Snap Action Switches .01A SnapActionSwich 25GF Hinge Lever

Datasheet:

D2F-01FL Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics D2F-01FL

In Stock: 3.087

Stock:: 3.087

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.000
Factory Lead Time:: 26

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,44 €	1,44 €
	1,30 €	13,00 €
	1,24 €	31,00 €
	1,20 €	60,00 €
	1,13 €	113,00 €
	1,04 €	260,00 €
	0,998 €	998,00 €
	0,963 €	4.815,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Basic / Snap Action Switches
RoHS:
Series:	D2F
Type:	Ultra Subminiature
Contact Form:	SPDT
Switch Function:	ON - (OFF), OFF - (ON)
Actuator:	Lever
Current Rating:	100 mA
Voltage Rating DC:	30 VDC
Operating Force:	0.74 N
Termination Style:	Solder Pin
Mounting Style:	PCB Mount
IP Rating:	IP40
Actuator Style:	Lever
Brand:	Omron Electronics
Contact Material:	Gold Alloy
Country of Assembly:	Not Available
Country of Diffusion:	JP
Country of Origin:	JP
Illuminated:	Non-Illuminated
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Product Type:	Snap Action Switches
Factory Pack Quantity:	1000
Subcategory:	Switches
Part # Aliases:	D2F01FL
Unit Weight:	500 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CNHTS:: 8536500090
CAHTS:: 8536509040
USHTS:: 8536509040
JPHTS:: 853650090
KRHTS:: 8536509090
MXHTS:: 8536509999
BRHTS:: 85365090
ECCN:: EAR99

D2F Ultra Subminiature Basic Switches

Omron D2F Ultra Miniature Basic Switches incorporate a snapping mechanism made with two highly precise split springs that ensure long durability. Flux penetration is prevented by using insertion molded terminals. Terminal options for the D2F Series include self-clinching PCB terminals, right-angled PCB terminals, left-angled PCB terminals, solder terminals, and compact solder terminals. The components also offer five actuator options [pin plunger, hinge lever, hinge roller lever, simulated roller lever (R1.3), and simulated roller lever (R2.5)].
