859-X08-203R0R4

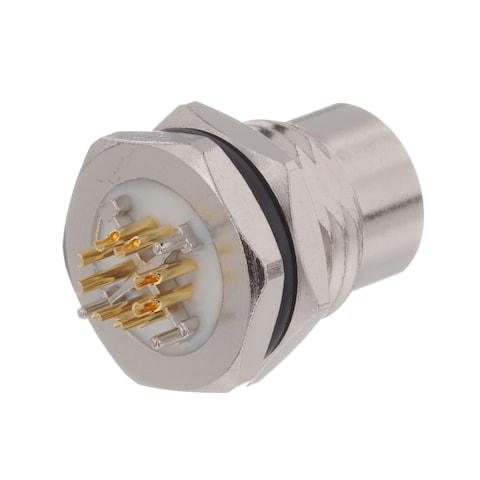

Name: NorComp 859-X08-203R0R4
Brand: NorComp
SKU: 636-859-X08-203R0R4
Price: 23.38 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

636-859-X08-203R0R4

Mfr. No:

859-X08-203R0R4

Mfr.:

NorComp

Description:

Circular Metric Connectors M12 X CODE FML SLDR CUP PNL MNT ROTATED

Datasheet:

859-X08-203R0R4 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about NorComp 859-X08-203R0R4

In Stock: 401

Stock:: 401

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 150
Factory Lead Time:: 14

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	23,38 €	23,38 €
	19,98 €	199,80 €
	18,73 €	468,25 €
	17,83 €	891,50 €
	16,98 €	1.698,00 €
	15,91 €	3.977,50 €
	15,76 €	7.880,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	NorComp
Product Category:	Circular Metric Connectors
RoHS:
REACH - SVHC:
Product Type:	Circular Metric Connectors
Number of Contacts:	8 Contact
Thread Size:	M12
Termination Style:	Solder Cup
Coding:	X Coded
Current Rating:	500 mA
Voltage Rating:	50 VAC/60 VDC
IP Rating:	IP67
Series:	M12
Packaging:	Tray
Body Style:	Straight
Brand:	NorComp
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Diameter:	18 mm
Gender:	Female
Housing Material:	Polyamide (PA)
Length:	21.9 mm
Mounting Style:	Panel Mount
Product:	Connectors
Shell Style:	Receptacle
Shielding:	Shielded
Factory Pack Quantity:	50
Subcategory:	Circular Connectors
Tradename:	VULCON
Unit Weight:	21,014 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

Videos

IP67/IP68 Circular Connectors by NorComp

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Medical Interconnect Solutions

Norcomp Medical Interconnect Solutions include a broad range of connectors, cable assemblies, and backshells designed for durability and a long lifespan. From in-home monitoring to the emergency room, reliable devices are the lifeline between patients and medical professionals. Norcomp offers interconnect solutions that ensure these vital devices never miss a beat. The comprehensive portfolio features miniature connectors, corrosion-resistant interconnects, shielded designs, and much more.

VULCON™ Circular Connectors

NorComp VULCON™ Circular Connectors offer a robust, waterproof cable-to-panel interface for demanding end-use applications. The VULCON connectors are available in 5mm, 8mm, and 12mm diameters with IP67/IP68 rated performance. The M5 circular connectors are highly versatile, with a compact, space-saving design for demanding applications. The M8 and M12 components conform to industry-standard Bus specs and are intermateable with various competitive products. The M16 connectors pin configurations are available in 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, and 8-pin.

Industrial Automation Solutions

NorComp Industrial Automation Solutions feature connectors designed for industrial robotic devices. These highly complex electromechanical machines may contain multiple computers and motors, dozens of sensors, hydraulic pumps, and connections to a network. There is also a growing need for reduced size, weight, and power consumption, along with increased connector throughput. NorComp has engineered connectors to meet the challenging demands of robotic systems used in industrial automation.

Telematic Connector Solutions

NorComp Telematic Connectors offer exceptional reliability and superior protection against moisture with an IP67 rating. These connectors are designed to withstand high-vibration environments, ensuring optimal performance. Suitable applications include emergency warning systems, GPS navigation, vehicle tracking, and fleet management devices. NorComp Telematic Connectors provide a secure and reliable connection that is essential for the precise reporting of telematics technology.

M12 X-Code VULCON™ Circular Connectors

NorComp M12 X-Code VULCON™ Circular Connectors offer an IP67 rating, a 100MΩ insulation resistance, and a 48V voltage rating. The M12 X-Code series includes a right-angled, solder cup X-Code with backshell kit, allowing cable assemblies to be built without the need for overmolding. NorComp M12 X-Code VULCON™ Circular Connectors are utilized in the Industrial Ethernet space where speeds up to 10GB are required.

Rugged Environment Certified (REC) Connectors

NorComp Rugged Environment Certified (REC) Connectors are ruggedized harsh-environment connector solutions that have been proven to withstand the most challenging environments. Rugged Environment Certified (REC) is an external testing certification certifying quality and performance. These connectors encompass D-sub and circular connectors that are available in standard, high-density, or mixed layout types. These connectors are reliable, cost-effective, provide ease of installation, and are ideal for use in many outdoor harsh environments including oil rigs, weather stations, and ruggedized industrial applications.
