NC4FD-LX-0

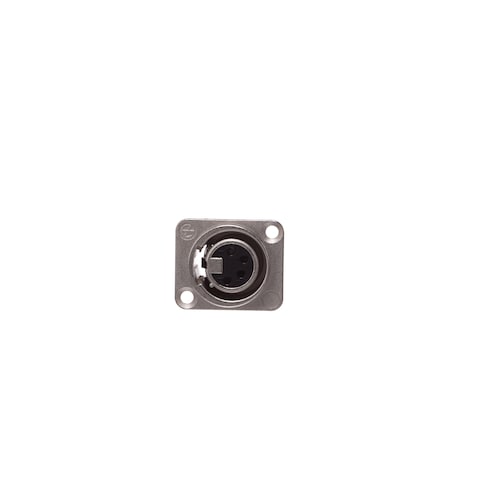

Name: Neutrik NC4FD-LX-0
Brand: Neutrik
SKU: 568-NC4FD-LX-0
Price: 6.98 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

568-NC4FD-LX-0

Mfr. No:

NC4FD-LX-0

Mfr.:

Neutrik

Description:

XLR Connectors 4P F RECEPT DLX SOLDER W/O LATCH

Datasheet:

NC4FD-LX-0 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Neutrik NC4FD-LX-0

In Stock: 50

Stock:: 50 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,98 €	6,98 €
	5,93 €	593,00 €
	5,89 €	5.890,00 €
	5,87 €	11.740,00 €
5.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Neutrik
Product Category:	XLR Connectors
RoHS:
REACH - SVHC:
Product:	Receptacles
Standard:	Standard XLR
Number of Positions:	4 Position
Gender:	Female
Termination Style:	Solder Cup
Mounting Style:	Chassis Mount
Contact Plating:	Silver
Orientation:	Straight
Series:	DLX
Brand:	Neutrik
Color:	Nickel
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	LI
Product Type:	XLR Connectors
Factory Pack Quantity:	100
Subcategory:	Audio & Video Connectors
Unit Weight:	34,778 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

NC4FD-LX-0 Datasheet (PDF)

RoHS Statement (PDF)

TARIC:: 8536699099
CNHTS:: 8536690000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Medical Solutions

NEUTRIK Medical Solutions feature robust locking connector and cabling products that are deployed widely throughout the medical industry. NEUTRIK Medical products include fiber optic, Ethernet, HDMI, USB, multi-pin circular, power, and other solutions to provide trusted connectivity when it is needed most. These solutions are used in various vital applications, from distributed data to high-definition video, simple sensors to complex hybrid power-and-data solutions, paging to robotic surgical equipment, and more.

DL XLR Connectors

NEUTRIK DL XLR Connectors feature a universal D-size shell for male and female versions. The metal housing, in nickel or black plating, offers RF protection. The DL series is available in 3-, 4-, 5-, 6-, and 7-pin configurations with silver- or gold-plated contacts. NEUTRIK DL XLR Connectors are UL-recognized components.

DLX XLR Connectors

NEUTRIK DLX XLR Connectors feature a compact all-metal housing with a duplex ground contact that offers high RF protection and shielding. The male connectors of the DLX Series feature an all-metal retention bar. Cage-type female contacts on the 3-pole version increase conductivity. The 4- to 7-pole versions feature machined male and female contacts. D-style housing provides installation compatibility with industry-standard D mounting dimensions. For space-sensitive applications (such as plug-in modules and small portable devices), NEUTRIK offers an asymmetric push tab. By using this design, a vertical (stacking) space-saving of approximately 20% can be achieved.

XLR Panel-Mount Connectors

NEUTRIK XLR Panel-Mount Connectors are part of almost every aspect of professional audio, such as microphones and lighting systems. They are also used in almost any piece of sound equipment in the entertainment industry. XLR connectors provide professionals with reliable, robust solutions. NEUTRIK XLR Panel-Mount Connectors are easy to assemble and simple to use. NEUTRIK has developed an asymmetric push tab for space-sensitive applications such as plug-in modules and small portable devices. The asymmetric push tab can achieve approximately 20% vertical (stacking) space savings.

eSports Solutions

NEUTRIK eSports products provide high-impact, flexible, and scalable solutions that guarantee a reliable connection from local and regional competitions to national events. In the world of gaming, it's not just about the fastest computer, graphics card, or video display; it's about having the best connectivity that ensures a better gaming performance at the highest speeds and lowest latency. NEUTRIK eSports Solutions will help create memorable gaming experiences for various eSports applications.
