78350-1001

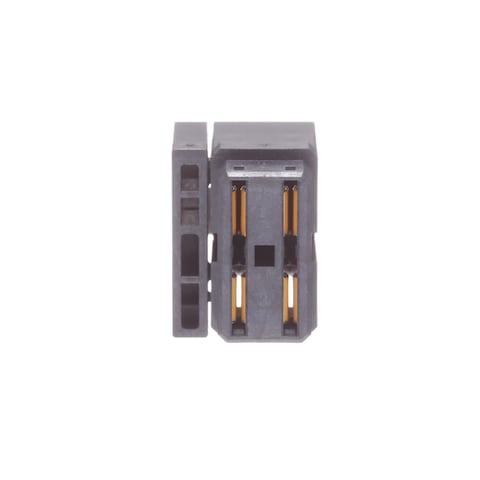

Name: Molex 78350-1001
Brand: Molex
SKU: 538-78350-1001
Price: 13.37 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-78350-1001

Mfr. No:

78350-1001

Mfr.:

Molex

Description:

High Speed/Modular Connectors IMPCT PWR4PR RA RCPT LHDN .76AULF 4CKT

Datasheet:

78350-1001 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 78350-1001

In Stock: 1

Stock:: 1 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 1 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	13,37 €	13,37 €
	11,86 €	118,60 €
	11,40 €	285,00 €
	10,95 €	547,50 €
	10,34 €	992,64 €
	9,43 €	2.414,08 €
	8,82 €	4.515,84 €
	8,08 €	8.273,92 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	High Speed/Modular Connectors
RoHS:
Product:	Receptacles
Number of Positions:	4 Position
Number of Rows:	2 Row
Pitch:	5.2 mm
Termination Style:	Press Fit
Contact Plating:	Gold
Series:	78350
Packaging:	Tray
Brand:	Molex
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	ID
Current Rating:	20 A
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Right Angle
Product Type:	High Speed / Modular Connectors
Factory Pack Quantity:	32
Subcategory:	Backplane Connectors
Tradename:	Impact
Voltage Rating:	250 V
Part # Aliases:	0783501001
Unit Weight:	12,080 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

78350-1001 Datasheet

Models

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Impact Backplane Connector System

Molex Impact Backplane System features data rates up to and beyond 25Gbps plus superior signal density of up to 30 pairs per cm. This system pushes the density envelope to meet next generation high-speed demands with one of the most versatile offerings in the market. Molex Impact Backplane System has a simple 1.90mm by 1.35mm grid that provides PCB routing flexibility.

High-Speed Solutions

Molex High-Speed Solutions meet the most stringent high-speed performance requirements. The broad connector portfolio supports a wide range of data rates in multiple sizes and shapes. High-speed interconnect solutions provide the flexibility and scalability required to meet the demands of next-generation systems.
