70541-0001

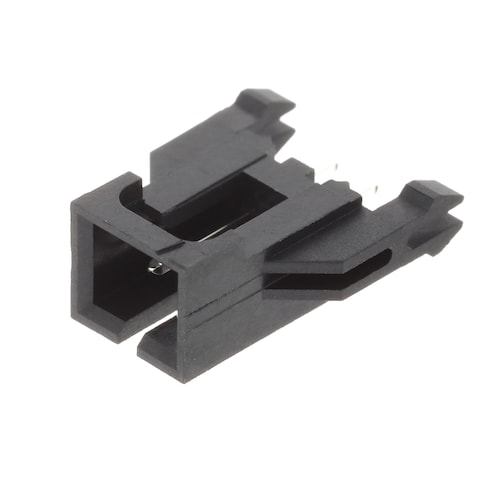

Name: Molex 70541-0001
Brand: Molex
SKU: 538-70541-0001
Price: 0.72 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-70541-0001

Mfr. No:

70541-0001

Mfr.:

Molex

Description:

Headers & Wire Housings SL Vrt Latch Hdr /Sp r /Split Pg Tin 2Ckt

Datasheet:

70541-0001 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 70541-0001

In Stock: 10.869

Stock:: 10.869

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 12.384
Factory Lead Time:: 13

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,722 €	0,72 €
	0,613 €	6,13 €
	0,517 €	44,46 €
	0,458 €	118,16 €
	0,419 €	432,41 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	2 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	70541
Tradename:	SL
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	Molex
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Thermoplastic (TP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	43
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 V
Part # Aliases:	0705410001
Unit Weight:	601 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

70541-0001 Datasheet

Models

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SL Modular Connectors

Molex SL (Stackable Linear) Modular Connectors include surface mount headers for low-power and signal wire-to-board and wire-to-wire applications. The comprehensive SL Modular Connector System includes two independent points of contact, a positive lock that secures retention between headers and receptacles, and a 2.54mm pitch. These connectors and assemblies provide ideal wire-to-wire solutions and supports a range of wire-to-board applications. Molex SL Modular Connectors are ideal for HVAC equipment, dental equipment, breathing machines, computer peripherals, and various automotive applications.
