504449-0507

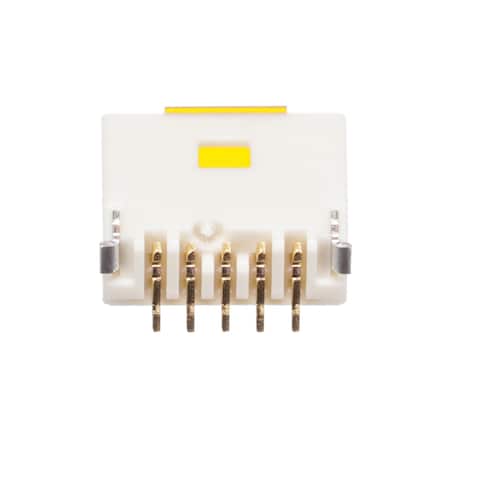

Name: Molex 504449-0507
Brand: Molex
SKU: 538-504449-0507
Price: 1.01 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-504449-0507

Mfr. No:

504449-0507

Mfr.:

Molex

Description:

Headers & Wire Housings 1.0 WB 1 ROW ST WAFER 5Ckt

Datasheet:

504449-0507 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 504449-0507

In Stock: 5.691

Stock:: 5.691 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1100)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,01 €	1,01 €
	0,903 €	9,03 €
	0,894 €	22,35 €
	0,765 €	76,50 €
	0,683 €	341,50 €
Full Reel (Order in multiples of 1100)
	0,585 €	643,50 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	5 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	504449
Tradename:	Pico-Clasp
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Molex
Contact Material:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Current Rating:	1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Polyamide (PA)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1100
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 VAC/DC
Part # Aliases:	5044490507 05044490507
Unit Weight:	120,600 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Pico-Clasp™ Wire-to-Board Connectors

Molex Pico-Clasp™ Wire-to-Board Connectors are the smallest pitch (1.00mm) wire-to-board connectors with positive lock. Pico-Clasp 1.00mm pitch connectors come in single-row and dual-row configurations. The series offers friction and positive locks for various application needs. Pico-Clasp is designed for various connections in flat panel displays (FPD). This Molex connector system is also ideal for use in notebook PCs and other compact devices.

Signal Wire-to-Wire/Wire-to-Board Connectors

Molex Signal Wire-to-Wire/Wire-to-Board Connectors and Connector Systems feature a variety of wire-to-board signal connectors that offer design flexibility. Molex Signal WTW/WTB connectors and systems are ideal for personal computers and lighting, as well as automotive and industrial applications, depending on the model.

Miniaturization Solutions

Molex Miniaturization Solutions are ideal for a vast array of applications such as automotive, smart devices, mobile devices, and medical technology. These connectors provide space savings, high-density signals, and durability. The miniaturization of Molex connectors offers the benefit of fitting more components into smaller spaces, leading to increased functionality without the increased size or weight.
