46999-0674

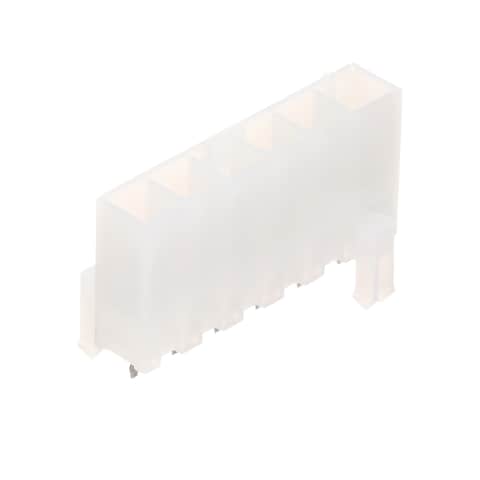

Name: Molex 46999-0674
Brand: Molex
SKU: 538-46999-0674
Price: 1.47 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-46999-0674

Mfr. No:

46999-0674

Mfr.:

Molex

Description:

Headers & Wire Housings MiniFitJr Vt Hdr w/peg SR 6Ckt V-2

Datasheet:

46999-0674 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 502

Stock:: 502 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 502 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,47 €	1,47 €
	1,28 €	12,80 €
	1,23 €	30,75 €
	0,946 €	94,60 €
	0,877 €	219,25 €
	0,832 €	416,00 €
	0,769 €	609,05 €
	0,74 €	1.758,24 €
	0,719 €	3.986,14 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	6 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	46999
Tradename:	Mini-Fit Jr.
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Contact Material:	Brass
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Flammability Rating:	UL 94 V-2
Housing Colour:	Natural
Housing Material:	Nylon
Latching Type:	Latched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	792
Subcategory:	Headers & Wire Housings
Part # Aliases:	469990674 0469990674 5566-06A3MS

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

46999-0674 Datasheet (PDF)

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.
