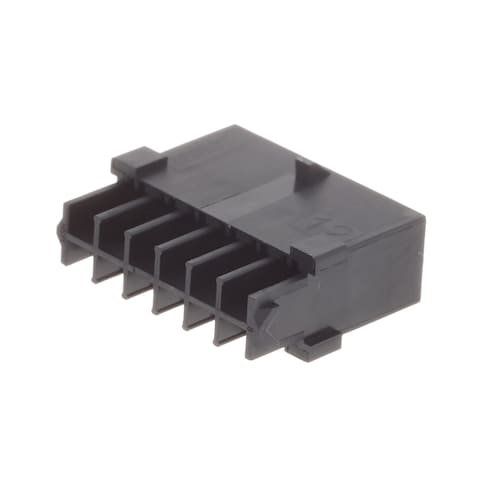

203632-1201

Name: Molex 203632-1201
Brand: Molex
SKU: 538-203632-1201
Price: 0.71 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-203632-1201

Mfr. No:

203632-1201

Mfr.:

Molex

Description:

Headers & Wire Housings Dual Row 12 Ckt Panel Mounts Black

Datasheet:

203632-1201 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 203632-1201

In Stock: 2.595

Stock:: 2.595 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,714 €	0,71 €
	0,63 €	6,30 €
	0,617 €	15,43 €
	0,605 €	151,25 €
	0,568 €	284,00 €
	0,542 €	542,00 €
	0,507 €	1.014,00 €
	0,458 €	2.290,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	12 Position
Pitch:	3 mm (0.118 in)
Number of Rows:	2 Row
Row Spacing:	3 mm (0.118 in)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Series:	203632
Tradename:	Micro-Fit 3.0
Application:	Wire-to-Wire, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Male
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Unit Weight:	1,095 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

203632-1201 Datasheet

Models

STP File (Zip)

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Micro-Fit 3.0 Connector System

Molex Micro-Fit 3.0 Connector System is designed to meet the needs for high contact density signal or power connectors. Micro-Fit 3.0 connectors feature a miniature 3mm (0.118") pitch, yet retain many of the features found on larger power connectors and can carry up to 8.5A of current. Molex Micro-Fit products are available in circuit sizes 2 to 24 for single- and dual-row, wire-to-board, and wire-to-wire applications such as computers, work stations, satellites, cellular phones, and a host of consumer products. Molex 46235 Micro-Fit 3.00mm Low Force Terminal offers the same reliability as the standard Micro-Fit products, but with half of the mating / unmating force for applications using large circuit sizes.
