172709-0104

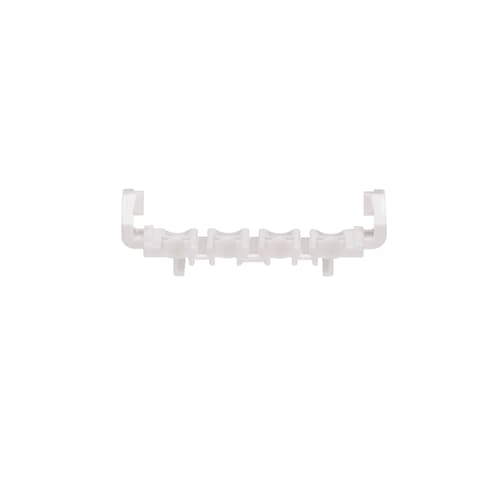

Name: Molex 172709-0104
Brand: Molex
SKU: 538-172709-0104
Price: 0.21 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-172709-0104

Mfr. No:

172709-0104

Mfr.:

Molex

Description:

Headers & Wire Housings MINIFIT TPA2 4CKT TPA RETAINER 94V-2 GW WHITE

Datasheet:

172709-0104 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 172709-0104

In Stock: 1.790

Stock:: 1.790 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,215 €	0,22 €
	0,187 €	1,87 €
	0,17 €	17,00 €
	0,151 €	37,75 €
	0,129 €	129,00 €
	0,107 €	256,80 €
	0,104 €	499,20 €
	0,096 €	1.152,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Accessories
Number of Positions:	4 Position
Number of Rows:	1 Row
Series:	172709
Tradename:	Mini-Fit TPA2
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Accessory Type:	Terminal Position Assurance (TPA)
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	White
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	2400
Subcategory:	Headers & Wire Housings
Part # Aliases:	1727090104 01727090104
Unit Weight:	290 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.

Mini-Fit TPA2 Power Connectors & Cable Assemblies

Molex Mini-Fit TPA2 Power Connectors ensure proper mating and prevent accidental terminal back-out while delivering a current rating of 9.0A. The TPA 2 connectors are compatible with standard Mini-Fit Jr. headers. The Standard Mini-Fit TPA2 Cable Assemblies deliver an off-the-shelf solution with a variety of cable lengths and a 4.20mm-pitch connector with a maximum current rating of 9.0A to facilitate both prototyping and global production. Typical applications for these connectors and cable assemblies include consumer / home appliances, data / communications, automotive, and industrial automation applications.
