172453-0412

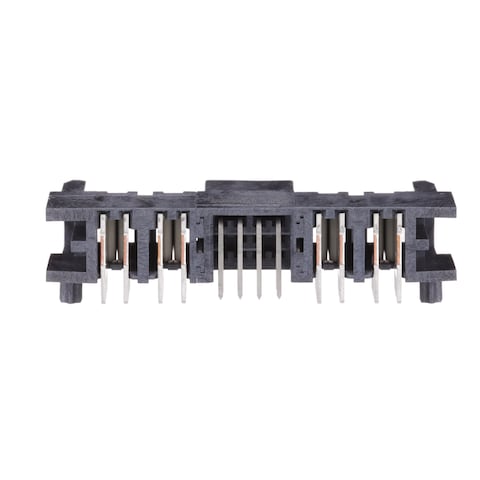

Name: Molex 172453-0412
Brand: Molex
SKU: 538-172453-0412
Price: 13.99 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-172453-0412

Mfr. No:

172453-0412

Mfr.:

Molex

Description:

Power to the Board EXTPWR TEN60 PLUG 12CKT SGN 4CKT PWR

Datasheet:

172453-0412 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 172453-0412

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	13,99 €	13,99 €
	12,13 €	121,30 €
	11,50 €	287,50 €
	11,33 €	566,50 €
	9,99 €	999,00 €
	9,33 €	2.332,50 €
	9,12 €	4.560,00 €
	8,66 €	8.660,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	50 A
Voltage Rating:	600 VAC, 250 VDC
Number of Positions:	4 Power, 12 Signal
Mounting Style:	Mounting Peg
Termination Style:	Solder Pin
Pitch:	7.5 mm, 2.54 mm
Series:	172453
Packaging:	Tray
Tradename:	EXTreme Ten60Power
Brand:	Molex
Contact Arrangement:	Power, Signal, Power
Contact Material:	Tin
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	ID
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Right Angle
Factory Pack Quantity:	25
Subcategory:	Power Connectors
Part # Aliases:	1724530412 01724530412
Unit Weight:	17,100 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

172453-0412 Datasheet

Images

1724530412 (PDF)

Models

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Industrial Automation

Molex Industrial Automation connectors provide a convenient source for meeting passive interconnect and industrial communications requirements for industrial applications. Molex Industrial Automation simplifies design, installation, and maintenance processes.

Industrial Solutions

Molex Industrial Solutions offer robust products designed for the harshest environmental conditions to deliver safe and reliable connections. These products also provide protection from contamination, moisture, or vibration. The Molex Industrial Solutions lineup features high performance and a long product life.

EXTreme Power Connectors

Molex EXTreme Power Connectors are specifically designed to support high-current applications. To operate at peak efficiency, today's data centers require interconnects that accommodate significant amounts of power, and Molex EXTreme power products meet those challenges. These power connectors are available in an extensive range of configurations for seamless integration into new and existing applications.

EXTreme Ten60Power High-Current Connectors

Molex EXTreme Ten60Power High-Current Connectors are hybrid power and signal devices that achieve up to 260A per linear inch and faster response times. EXTreme Ten60Power High-Current Connectors are designed for applications that require high current density and low power loss. Designed as a higher current and lower profile power interconnect than existing connectors, Molex EXTreme Ten60Power provides maximum current-to-length ratio packaged in a low-profile, 10mm height housing that enhances system airflow within the power system. Both the plug and receptacle utilize reliable, proven Molex power and signal contact designs.
