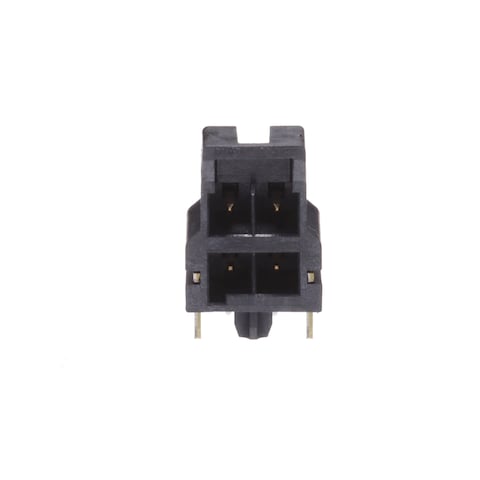

Name: Molex 172316-3204
Brand: Molex
SKU: 538-172316-3204
Price: 1.81 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-172316-3204

Mfr. No:

172316-3204

Mfr.:

Molex

Description:

Headers & Wire Housings ULTRAFIT HDR RT 2R BLK 04 CKT 15AU

Datasheet:

172316-3204 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 172316-3204

In Stock: 1.924

Stock:: 1.924

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.240
Factory Lead Time:: 33

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,81 €	1,81 €
	1,55 €	15,50 €
	1,27 €	127,00 €
	1,16 €	580,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	PCB Receptacle
Number of Positions:	4 Position
Pitch:	3.5 mm (0.138 in)
Number of Rows:	2 Row
Mounting Style:	Panel Mount
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	172316
Tradename:	Ultra-Fit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tray
Brand:	Molex
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	12 A
Housing Colour:	Black
Housing Gender:	Receptacle
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1240
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 V
Part # Aliases:	1723163204 01723163204
