15-31-3066

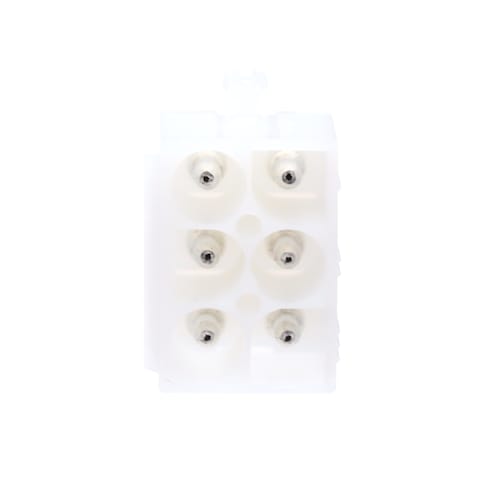

Name: Molex 15-31-3066
Brand: Molex
SKU: 538-15-31-3066
Price: 2.21 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-15-31-3066

Mfr. No:

15-31-3066

Mfr.:

Molex

Description:

Headers & Wire Housings 6 Ckt Hdr Assembly Hollow Pin

Datasheet:

15-31-3066 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 696

Stock:: 696 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 696 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,21 €	2,21 €
	2,00 €	20,00 €
	1,90 €	47,50 €
	1,77 €	177,00 €
	1,55 €	387,50 €
	1,51 €	604,00 €
	1,31 €	1.572,00 €
	1,22 €	3.416,00 €
	1,17 €	6.084,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	PCB Header
Number of Positions:	6 Position
Pitch:	6.7 mm (0.264 in)
Number of Rows:	2 Row
Row Spacing:	6.7 mm (0.264 in)
Mounting Style:	Panel Mount
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Termination Post Length:	3.5 mm (0.138 in)
Series:	5219
Tradename:	Mini-Fit
Brand:	Molex
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Flammability Rating:	UL 94 V-2
Housing Colour:	White
Housing Material:	Nylon
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Part # Aliases:	15313066 015313066
Unit Weight:	4,062 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
