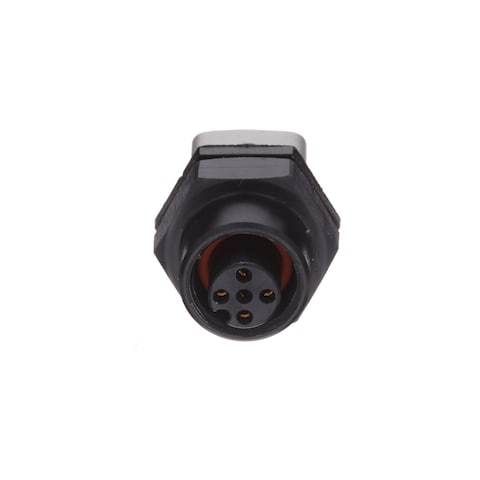

120070-0238

Name: Molex 120070-0238
Brand: Molex
SKU: 538-120070-0238
Price: 32.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-120070-0238

Mfr. No:

120070-0238

Mfr.:

Molex

Description:

Circular Metric Connectors MicroChange M12 Recp 5P Female Straight

Datasheet:

120070-0238 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 120070-0238

In Stock: 12

Stock:: 12 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 12 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	32,51 €	32,51 €
	27,63 €	276,30 €
	26,38 €	659,50 €
	25,53 €	893,55 €
	24,68 €	2.591,40 €
	23,31 €	6.526,80 €
	22,64 €	11.886,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Circular Metric Connectors
RoHS:
Product Type:	Circular Metric Connectors
Number of Contacts:	5 Contact
Thread Size:	M12
Termination Style:	Through Hole
Current Rating:	4 A
Voltage Rating:	250 VAC, 250 VDC
IP Rating:	IP67
Series:	120070
Body Style:	Straight
Brand:	Molex
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Gender:	Jack (Female)
Housing Material:	Nylon
Mounting Style:	PCB
Mounting Type:	Rear Mount
Product:	Connectors
Shell Style:	Receptacle
Factory Pack Quantity:	35
Subcategory:	Circular Connectors
Tradename:	Brad Micro-Change
Type:	Right Angle
Part # Aliases:	8R5L500005 01200700238 1200700238
Unit Weight:	342,050 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

120070-0238 Datasheet

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Brad® Micro-Change® M12 PCB Receptacles

Molex Brad® Micro-Change® M12 PCB Receptacles comply with OEM automated manufacturing requirements and offer strong mechanical and electrical connections. The Rugged Micro-Change receptacles provide a high-pin-density M12 solution and are ideal for use in harsh commercial and industrial environments. These connectors provide a very reliable connection with a compact footprint that is optimized for automated termination.

Industrial Solutions

Molex Industrial Solutions offer robust products designed for the harshest environmental conditions to deliver safe and reliable connections. These products also provide protection from contamination, moisture, or vibration. The Molex Industrial Solutions lineup features high performance and a long product life.

Industrial Connectivity Solutions

Molex connectivity and communication solutions for automation are ideal for rugged designs for harsh-duty manufacturing environments. These Molex connectivity solutions serve automotive, food and beverage, material handling, and commercial vehicle applications.

Industrial Automation

Molex Industrial Automation connectors provide a convenient source for meeting passive interconnect and industrial communications requirements for industrial applications. Molex Industrial Automation simplifies design, installation, and maintenance processes.

Molex Brad Connectors

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.
