105431-1407

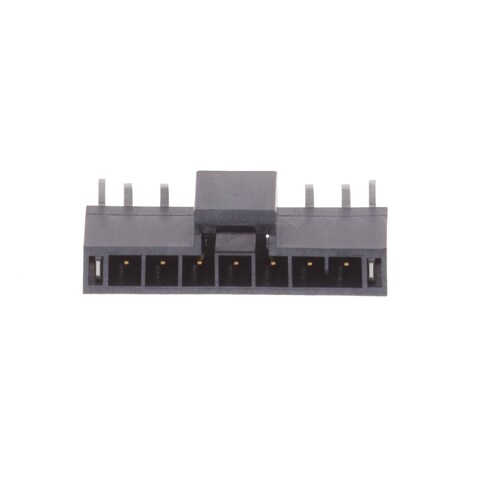

Name: Molex 105431-1407
Brand: Molex
SKU: 538-105431-1407
Price: 4.37 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-105431-1407

Mfr. No:

105431-1407

Mfr.:

Molex

Description:

Headers & Wire Housings NANO-FIT HDR SMT VT SGL 7CKT 30AU LB BLK

Datasheet:

105431-1407 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 105431-1407

In Stock: 600

Stock:: 600 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 600 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,37 €	4,37 €
	3,98 €	39,80 €
	3,77 €	94,25 €
	3,68 €	184,00 €
	3,50 €	350,00 €
	3,07 €	767,50 €
	2,98 €	1.788,00 €
	2,54 €	3.048,00 €
	2,37 €	7.110,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Power
Number of Positions:	7 Position
Pitch:	2.5 mm (0.098 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	105431
Tradename:	Nano-Fit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 115 C
Brand:	Molex
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	6.5 A
Housing Colour:	Black
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	600
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC
Part # Aliases:	1054311407 01054311407

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Nano-Fit 2.5mm Pitch Power Connectors

Molex Nano-Fit 2.5mm Pitch Power Connectors provide a space-saving solution to the design challenge of choosing between exposed terminals or space-greedy protected headers. The Nano-Fit connectors are fully isolated compact connectors that deliver up to 8A with keying options and optional terminal position assurance (TPA). Multiple mechanical keying and color-coded options aid in the prevention of cross-mating, which enables faster assembly times. An optional TPA retainer ensures that the terminals are fully seated in the housing, reducing back out. The connectors also feature a positive-lock housing with an anti-snag design preventing accidental disengagement. Molex Nano-Fit 2.5mm Pitch Power Connectors are ideal for use in consumer/home appliances, telecommunication/networking, automotive, lighting, aerospace/defense, industrial, and medical applications.
