105411-0108

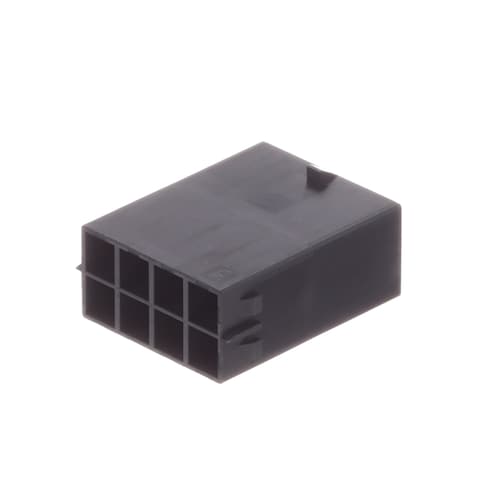

Name: Molex 105411-0108
Brand: Molex
SKU: 538-105411-0108
Price: 1.19 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-105411-0108

Mfr. No:

105411-0108

Mfr.:

Molex

Description:

Headers & Wire Housings Mega-fit Freehang Plg Hsg DR 8ckt Blk

Datasheet:

105411-0108 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 105411-0108

In Stock: 1.429

Stock:: 1.429 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,19 €	1,19 €
	1,04 €	10,40 €
	0,989 €	24,73 €
	0,929 €	92,90 €
	0,841 €	210,25 €
	0,775 €	426,25 €
	0,693 €	762,30 €
	0,649 €	1.784,75 €
	0,62 €	3.410,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	8 Position
Pitch:	5.7 mm (0.224 in)
Number of Rows:	2 Row
Row Spacing:	5.7 mm (0.224 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Series:	105411
Tradename:	Mega-Fit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 120 C
Brand:	Molex
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Male
Housing Material:	Nylon
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	550
Subcategory:	Headers & Wire Housings
Part # Aliases:	1054110108 01054110108
Unit Weight:	5,440 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8547200090
CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Mega-Fit Power Connectors

Molex Mega-Fit Power Connectors deliver up to 23A per circuit set on a 5.7mm pitch. This innovative design allows design engineers more power density than existing mid-range power connectors. Mega-Fit connectors are designed for wire-to-board configurations and can be used in virtually any industry or application. The system provides fully isolated terminals, positive lock housings, and polarized receptacles and housings. This split-box terminal design provides six independent points of contact to offer long-term reliability. Molex Mega-Fit products are UL recognized and CSA approved. All components are lead-free and RoHS compliant.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
