EXB.0B.309.HLN

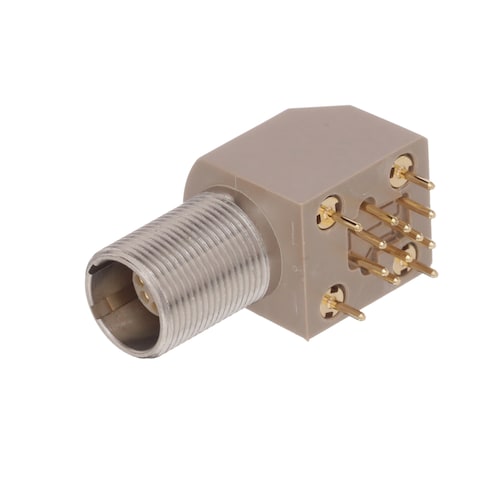

Name: LEMO EXB.0B.309.HLN
Brand: LEMO
SKU: 736-EXB0B309HLN
Price: 70.84 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

736-EXB0B309HLN

Mfr. No:

EXB.0B.309.HLN

Mfr.:

LEMO

Description:

Circular Push Pull Connectors

Datasheet:

EXB.0B.309.HLN Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about LEMO EXB.0B.309.HLN

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	70,84 €	70,84 €
	60,22 €	602,20 €
	56,45 €	1.411,25 €
	53,76 €	2.688,00 €
	52,66 €	5.266,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	LEMO
Product Category:	Circular Push Pull Connectors
RoHS:
REACH - SVHC:
Product:	Receptacles
Connector Type:	Elbow Socket (Receptacle)
Contact Gender:	Socket (Female)
Number of Contacts:	9 Contact
Shell Size:	309
Mounting Style:	Panel Mount
Termination Style:	Print (Straight)
IP Rating:	IP50
Series:	0B
Brand:	LEMO
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	1.5 A
Product Type:	Circular Push Pull Connectors
Shell Material:	Plastic
Shell Plating:	Nickel
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Tradename:	B Series

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

EXB.0B.309.HLN Datasheet (PDF)

Product Catalogs

Unipole & Multipole Connectors (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Automotive Solutions

LEMO offers a broad portfolio of automotive connectors that are broken down into four series for harsh environments: B, F, M, and T. These connectors from LEMO have a push-pull, self-latching design, or a ratchet-coupling mechanism, up to 13 keying options, and a multiple contact range from 2 to 114.

ORIGINALS B Series Connectors

LEMO's ORIGINALS B Series Connectors are keyed, multipole, and hybrid connectors that are ideal for instrument applications across many markets. The Push-Pull latching mechanism provides a secure connection, while the density of the contacts offers panel space savings. Multi-key options prevent cross-mating of similar connectors within a panel. Contact types include LV, fiber optic, HV, coax, as well as hybrid versions. LEMO's B Series Connectors have a temperature range of -55°C to +250°C and rugged housing for extreme working conditions. These connectors are used in medical, semiconductor, audio, video, aerospace, and transportation industries.

Connectors for Robotics & Industrial Control

LEMO Connectors for Robotics and Industrial Control provide high reliability and a long life cycle. They are ideal for critical applications in which the connector has to work every time or for applications in which systems are frequently set up and torn down. LEMO connectors also can be used externally on products. They feature push-pull or ratchet coupling for easy mating and unmating, enabling reduced maintenance and installation time. LEMO Connectors for Robotics and Industrial Control are ideally suited for use in legged robots, animatronics (actuators and servos), high-speed cameras, machine control systems, inspection sensors, and test and measurement applications.
