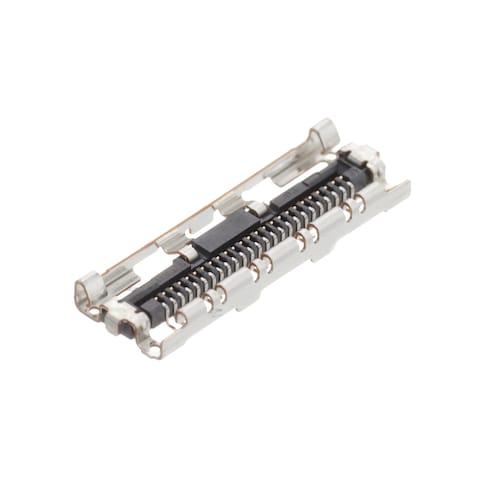

DF36A-25S-0.4V(52)

Name: Hirose Electric DF36A-25S-0.4V(52)
Brand: Hirose Connector
SKU: 798-DF36A25S04V52
Price: 1.47 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-DF36A25S04V52

Mfr. No:

DF36A-25S-0.4V(52)

Mfr.:

Hirose Connector

Description:

Headers & Wire Housings

Datasheet:

DF36A-25S-0.4V(52) Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector DF36A-25S-0.4V(52)

In Stock: 1.476

Stock:: 1.476 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 1476 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,47 €	1,47 €
	1,28 €	12,80 €
	1,23 €	30,75 €
	1,14 €	114,00 €
	1,03 €	257,50 €
	0,955 €	477,50 €
	0,845 €	845,00 €
	0,792 €	1.584,00 €
Full Reel (Order in multiples of 4000)
	0,774 €	3.096,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Headers & Wire Housings
Product:	Receptacles
Type:	Micro-Coaxial Cable Connector
Number of Positions:	25 Position
Pitch:	0.4 mm (0.016 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	DF36
Application:	Board-to-Cable
Wire Gauge:	46 AWG to 42 AWG
Minimum Operating Temperature:	- 35 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Hirose Connector
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	250 mA
Flammability Rating:	UL94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	50 MOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	4000
Subcategory:	Headers & Wire Housings
Voltage Rating:	30 VAC
Part # Aliases:	662-4011-4-52

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DF36A-25S-0.4V(52) Datasheet (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

DF36 0.4mm Pitch Micro-Coaxial Cable Connectors

Hirose Electric DF36 0.4mm Pitch Micro-Coaxial Cable Connectors feature a vertical mating design that saves space and allows easy passage through a small-diameter hinge. A four-point locking design is built into these connectors, providing a clear, audible click that reduces mismating issues and accidental disconnects. The pinching contact design provides high contact reliability, and the nickel barrier on the mounted leads prevents solder wicking. Hirose Electric DF36 Connectors are suitable for drones, ultrasonography, laptop PCs, security systems, FA cameras, and wire-to-board applications.
