DF20EG-30DP-1V(52)

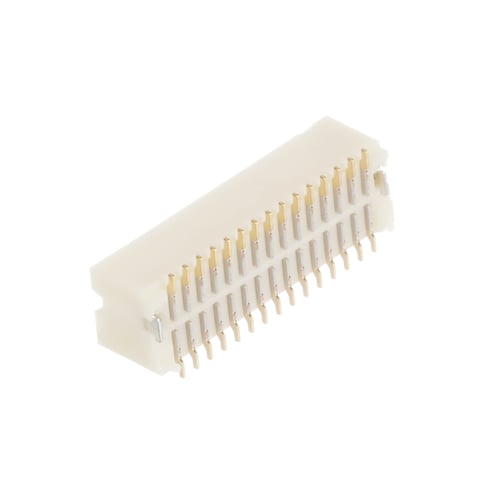

Name: Hirose Electric DF20EG-30DP-1V(52)
Brand: Hirose Connector
SKU: 798-DF20EG-30DP-1V52
Price: 1.88 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-DF20EG-30DP-1V52

Mfr. No:

DF20EG-30DP-1V(52)

Mfr.:

Hirose Connector

Description:

Headers & Wire Housings

Datasheet:

DF20EG-30DP-1V(52) Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector DF20EG-30DP-1V(52)

In Stock: 741

Stock:: 741 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1000)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,88 €	1,88 €
	1,60 €	16,00 €
	1,36 €	136,00 €
	1,22 €	610,00 €
Full Reel (Order in multiples of 1000)
	1,20 €	1.200,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Header
Number of Positions:	30 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	DF20
Wire Gauge:	28 AWG
Minimum Operating Temperature:	- 35 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Hirose Connector
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Beige
Housing Gender:	Male
Housing Material:	Polyamide
Insulation Resistance:	500 MOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Voltage Rating:	100 V
Part # Aliases:	686-0061-0-52

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DF20EG-30DP-1V(52) Datasheet

Models

DF20EG-30DP-1V(52) Symbol & Footprint by SnapMagic

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

DF20 SignalBee 1.0mm Board-to-Cable Connectors

Hirose Electric DF20 SignalBee 1.0mm Board-to-Cable Connectors are 1mm pitch, double-row connectors for notebook PCs and various portable devices. Hirose DF20 SignalBee 1.0mm Board-to-Cable Connectors offer a narrow width (5.0 to 6.4mm) and length (7.2mm to 27.3mm), permitting end-to-end mounting of several connectors. The series has 10 to 50 contacts and is offered in straight or right-angle connector orientations.
