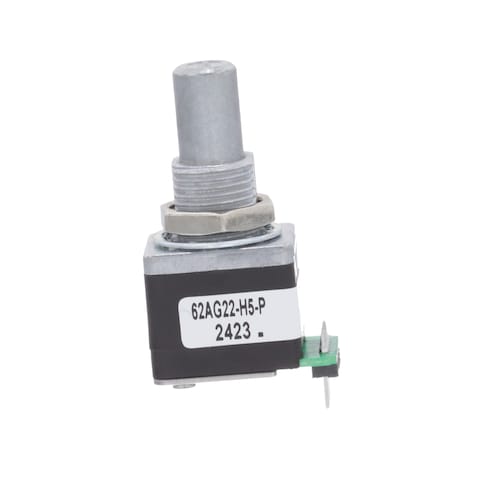

62AG22-H5-P

Grayhill
706-62AG22-H5-P
62AG22-H5-P

Mfr.:

Description:
Encoders 5VDC 22.5deg 16pos HiTorque 510gf Pins

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 70

Stock:
70
Can Dispatch Immediately
On Order:
100
Factory Lead Time:
10
Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:

Pricing (EUR)

Qty. Unit Price
Ext. Price
30,03 € 30,03 €
26,28 € 131,40 €
24,75 € 247,50 €
23,06 € 576,50 €
22,40 € 1.120,00 €
19,63 € 1.963,00 €
18,84 € 4.710,00 €
18,83 € 9.415,00 €
1.000 Quote

Product Attribute Attribute Value Select Attribute
Grayhill
Product Category: Encoders
62AG
PCB Mount
Optical Encoders
Incremental
16 PPR
Optical
16 Detent
2 Channel
PC Pin
Quadrature
6.32 mm
D / Flatted
Pushbutton Switch
5 VDC
1000000 Cycle
Brand: Grayhill
Bushing Material: Metal
Bushing Size: 3/8 in x 0.312 in
Bushing Thread: 3/8-32 UNEF-2A
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Product Type: Encoders
Shaft Length: 3/8 in
Size/Dimension: 14.73 mm x 12.7 mm
Factory Pack Quantity: 1
Subcategory: Encoders
Unit Weight: 23,025 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

PCN

This functionality requires JavaScript to be enabled.

TARIC:
8536501590
CNHTS:
8543909000
CAHTS:
8543700000
USHTS:
8543704500
JPHTS:
854370000
ECCN:
EAR99

62AG Optical Encoders

Grayhill 62AG Optical Encoders are available with multiple resolution options to allow the user to fine-tune settings. The 62AG Optical Encoders from Grayhill offers 16, 20, 24, and 32 position resolutions and an optional integrated push-button that allows scrolling items from a list or menu and selecting the desired function. The 62AG generates a two-bit digital output to measure the magnitude and direction of the shaft or knob rotation. The additional resolution options, high performance, and low price make the 62AG encoders an ideal user interface solution for multiple applications.
