CA1-B0-14-680-322-C

Name: Carling Technologies CA1-B0-14-680-322-C
Brand: Carling Technologies
SKU: 691-CA1B014680322C
Price: 53.27 EUR
Availability: InStock

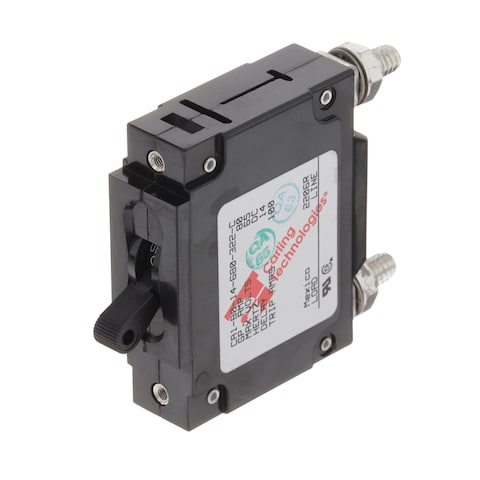

Images are for reference only
See Product Specifications

Mouser No:

691-CA1B014680322C

Mfr. No:

CA1-B0-14-680-322-C

Mfr.:

Carling Technologies

Description:

Circuit Breakers C series Circuit Breaker

Datasheet:

CA1-B0-14-680-322-C Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Carling Technologies CA1-B0-14-680-322-C

In Stock: 5

Stock:: 5 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	53,27 €	53,27 €
	44,19 €	220,95 €
	40,76 €	407,60 €
	33,74 €	1.687,00 €
	31,39 €	3.139,00 €
	29,15 €	7.287,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Carling Technologies
Product Category:	Circuit Breakers
RoHS:
Series:	C
Product:	Circuit Breaker
Type:	Hydraulic Magnetic
Current Rating:	80 A
Voltage Rating AC:	120 VAC, 240 VAC
Number of Poles:	1 Pole
Actuator Type:	Handle
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Illuminated:	Non-Illuminated
Brand:	Carling Technologies
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Height:	63.5 mm
Length:	47 mm
Mounting Style:	Panel Mount
Product Type:	Circuit Breakers
Factory Pack Quantity:	1
Subcategory:	Circuit Breakers
Termination Style:	Stud
Voltage Rating:	480 VAC, 150 VDC
Width:	19.18 mm
Part # Aliases:	CA1B014680322C
Unit Weight:	112 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

CA1-B0-14-680-322-C Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536200000
CAHTS:: 8536200090
USHTS:: 8536200040
JPHTS:: 853620000
KRHTS:: 8536200000
BRHTS:: 85362000
ECCN:: EAR99

C-Series Circuit Breakers

Carling Technologies C-Series Circuit Breakers are UL489 breakers designed for high-amperage, high-voltage applications. The series, in a compact design, is available with a variety of terminals, actuator styles, and colors. Carling C-Series Circuit Breakers feature an arc chute design that allows for higher interrupting capacities, up to 10,000A.

Hydraulic-Magnetic Circuit Breakers

Carling Technologies Hydraulic-Magnetic Circuit Breakers offer reliable, highly precise solutions to most design challenges and are available with multiple configurations. The circuit breakers are temperature stable and not appreciably affected by changes in ambient temperature, and their overcurrent mechanism only reacts to changes in current in the circuit being protected. These hydraulic-magnetic series from Carling Technologies offer multiple configuration options, advanced features, and cutting-edge designs that meet leading application requirements.
