13783291

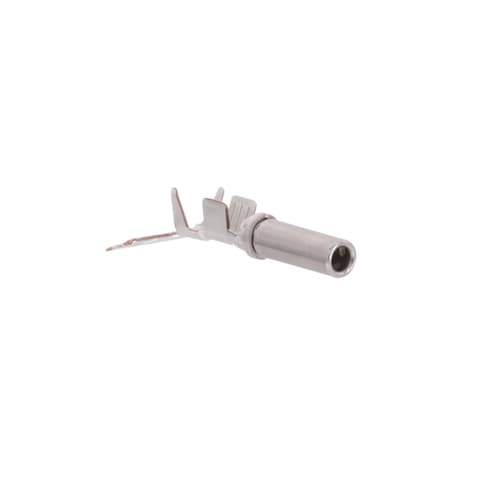

Name: Aptiv 13783291
Brand: Aptiv (formerly Delphi)
SKU: 829-13783291
Price: 1.18 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-13783291

Mfr. No:

13783291

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors 2.4 HD-V Female NI Unsealed Terminal

Datasheet:

13783291 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 13783291

In Stock: 1.879

Stock:: 1.879 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,18 €	1,18 €
	0,691 €	17,28 €
	0,664 €	33,20 €
	0,639 €	63,90 €
	0,575 €	287,50 €
	0,555 €	555,00 €
Full Reel (Order in multiples of 2000)
	0,498 €	996,00 €
	0,477 €	1.908,00 €
	0,46 €	4.600,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Terminals
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Nickel
Wire Gauge Min:	14 AWG
Wire Gauge Max:	12 AWG
Series:	HES 2.4
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Aptiv (formerly Delphi)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Family:	HD-V
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	2000
Subcategory:	Automotive Connectors
Tradename:	HES
Wire Gauge Range:	12 AWG to 14 AWG
Unit Weight:	1,685 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

13783291 Datasheet

This functionality requires JavaScript to be enabled.

TARIC:: 8536901000
CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536699000
MXHTS:: 8536902800
BRHTS:: 85366990
ECCN:: EAR99

HES Terminals

Aptiv (formerly Delphi) Harsh Environment Series (HES) Terminals achieve high current performance using high conductive materials. The overlapping wing design offers exceptional strain relief and larger outside diameter cable range capability. A stainless steel sleeve provides stability and protection to the contact interface area. Aptiv's crimp design accommodates a wide range of cable sizes, and the use of tin in the crimp area provides stability over the terminal life. Aptiv HES Terminals are interchangeable with industry-standard terminal products.

HES Connection System

Aptiv (formerly Delphi) Harsh Environment Series (HES) Connection System offers higher current capability, improved sealing, and better terminal retention compared to standard pin-and-sleeve systems. Aptiv Harsh Environment Series (HES) Connection System consists of circular connectors, terminals, and rectangular 50- and 60-way headers. The HES series is well-suited for agriculture, commercial vehicle, construction, marine, and other harsh environment applications. This system is also compatible with existing systems in agricultural and commercial vehicle markets.
