13510096

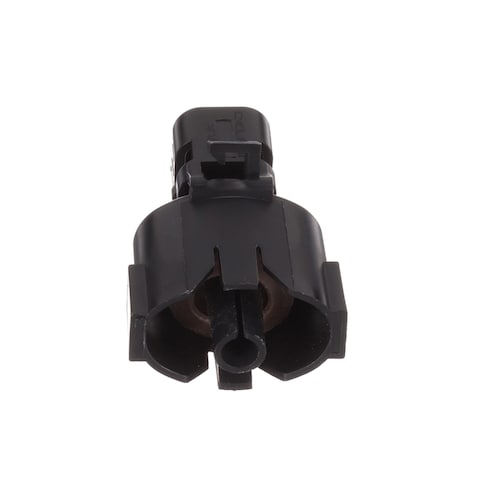

Name: Aptiv 13510096
Brand: Aptiv (formerly Delphi)
SKU: 829-13510096
Price: 2.44 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-13510096

Mfr. No:

13510096

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors 1 Way M W/P Sealed

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 13510096

In Stock: 162

Stock:: 162 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,44 €	2,44 €
	1,45 €	36,25 €
	1,38 €	69,00 €
	1,34 €	134,00 €
	1,24 €	620,00 €
	0,853 €	938,30 €
	0,816 €	1.795,20 €
	0,794 €	4.367,00 €
	0,784 €	8.624,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	1 Position
Gender:	Pin (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Black
Series:	Sealed
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	20 A
Dimensions:	39.4 mm L x 25.8 mm W x 21 mm H
Family:	Weather-Pack
Height:	21 mm
Length:	39.4 mm
Locking Mechanism:	Cavity Lock
Material:	Nylon
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	1100
Subcategory:	Automotive Connectors
Tradename:	Weather Pack
Type:	1-Way
Width:	25.8 mm
Unit Weight:	6,070 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Drawing

This functionality requires JavaScript to be enabled.

TARIC:: 8547200090
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

Weather Pack Connection Systems

Aptiv Weather Pack Connection Systems is a series of environmentally sealed electrical connectors designed to withstand exposure to extreme temperatures and moisture. The Aptiv Weather Pack Connection Systems feature tin-plated terminals with special core wings that allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities. Weather Pack terminals utilize a flex-pin and lap-lock design to alleviate the problem of stress relaxation. They also have dual-locking tangs that lock into the connector cavity and help prevent backing out.
