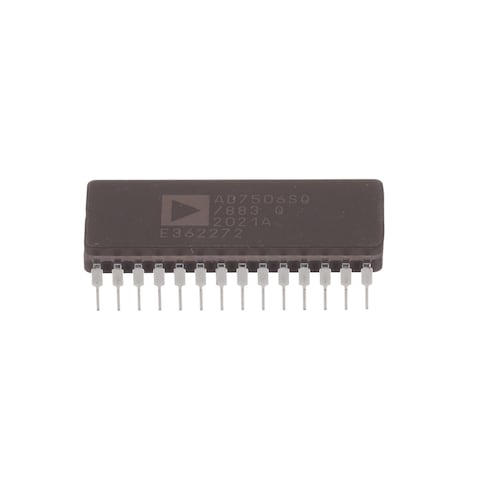

AD7506SQ/883B

Name: Analog Devices Inc. AD7506SQ/883B
Brand: Analog Devices
SKU: 584-AD7506SQ883B
Price: 223.12 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

584-AD7506SQ883B

Mfr. No:

AD7506SQ/883B

Mfr.:

Analog Devices

Description:

Multiplexer Switch ICs CMOS MULTIPLEXER IC

Datasheet:

AD7506SQ/883B Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Analog Devices AD7506SQ/883B

In Stock: 3

Stock:: 3 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	223,12 €	223,12 €
	186,02 €	2.232,24 €
	177,40 €	4.257,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Analog Devices Inc.
Product Category:	Multiplexer Switch ICs
RoHS:	N
Series:	AD7506
Product:	Multiplexers
Mounting Style:	Through Hole
Number of Channels:	16 Channel
Configuration:	1 x 16:1
Minimum Dual Supply Voltage:	+/- 15 V
Maximum Dual Supply Voltage:	+/- 15 V
On Resistance - Max:	450 Ohms
On Time - Max:	1.5 us
Off Time - Max:	1 us
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Analog Devices
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	PH
Product Type:	Multiplexer Switch ICs
Propagation Delay Time:	1000 ns
Factory Pack Quantity:	12
Subcategory:	Switch ICs
Unit Weight:	476,875 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AD7506SQ/883B Datasheet (PDF)

PCN

RoHS Certificate (PDF)

TARIC:: 8542399000
CNHTS:: 8542319090
CAHTS:: 8542390000
USHTS:: 8542390090
JPHTS:: 854239099
MXHTS:: 8542399999
ECCN:: EAR99

Analog Switches & Multiplexers

Analog Devices Analog Switches and Multiplexers offer a comprehensive range of devices covering single to multiple switch elements. These switches and multiplexers come with various signal ranges in a variety of packages to suit different application needs. The analog switches and multiplexers are used in a wide and growing range of applications from industrial and instrumentation to medical, consumer, communications, and automotive systems.

Switches & Multiplexers

Analog Devices Switches & Multiplexers offer a comprehensive portfolio of switches and multiplexers covering single to multiple switch elements. These switch elements come with various signal ranges in a variety of packages to best suit application needs. The ADI switches and multiplexers are used in a wide and growing range of applications from industrial and instrumentation to medical, consumer, communications, and automotive systems.
