RT00122SNHEC

Images are for reference only
See Product Specifications

Mouser No:

654-RT00122SNHEC

Mfr. No:

RT00122SNHEC

Mfr.:

Amphenol SINE Systems

Description:

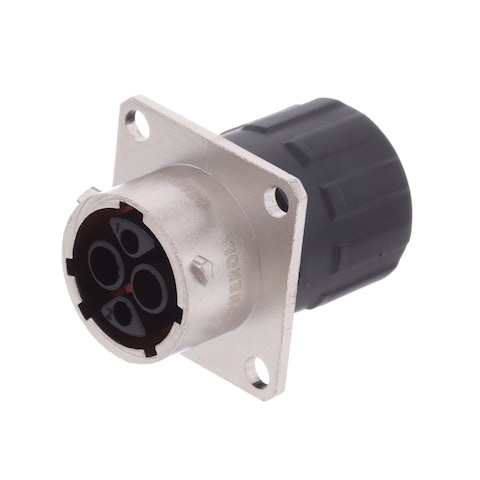

Standard Circular Connector Receptacle, Square Flange, 3 Position, Female, Shell Size 12, and End Cap with Individual Wire Sealing

Datasheet:

RT00122SNHEC Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RT00122SNHEC

Delivery Restriction:

Mouser does not presently sell this product in your region.

Availability

Stock:: An unexpected error occurred. Please try again later.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
Delivery Restriction:	Mouser does not presently sell this product in your region.
RoHS:
Product:	Connectors
Number of Positions:	4 Position
Contact Gender:	Socket (Female)
Shell Size:	12
Mounting Style:	Panel
Termination Style:	Crimp
Shell Material:	Zinc Alloy
Accessory Type:	Square Flange Receptacle
IP Rating:	IP67
Series:	RM
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	5 A, 7.5 A, 23 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Female
Housing Material:	Zinc Alloy
Insert Arrangement:	12-02
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Plating:	Nickel
Shell Style:	Square Flange
Factory Pack Quantity:	50
Subcategory:	Circular Connectors
Tradename:	Ecomate
Voltage Rating:	500 V
Wire Gauge:	28 AWG to 12 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

RT00122SNHEC Datasheet (PDF)

Models

3D Image

Product Catalogs

Technical Resources

Assembly Instructions (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

ecomate® Connectors

Amphenol ecomate^® Connectors offer an IP65 to IP69K rating range (in mated condition) for indoor and outdoor industrial applications. These circular, multiway connectors utilize durable plastic or metal construction with a circular bayonet, a quick-locking automatic, or a rapid coupling system option. The Amphenol ecomate family is robust and provides a maximum amperage/voltage range of 56A to 300A/600V to 900V, depending on the series. Suitable applications include factory automation, industrial, solar energy and power, heavy equipment, heavy duty, transportation, marine, entertainment/lighting, robotics, and more.

ecomate® Rugged Metal (RM) Shielded Connectors

Amphenol Sine Systems ecomate^® Rugged Metal (RM) Series Shielded Connectors of circular metal connectors provide an IP67 rating (in mated condition) for industrial applications, all in a sealed connector system. With a circular bayonet coupling system and a maximum current rating of 45A/600V, the ecomate RM series is perfect for indoor/outdoor applications in factory automation, industrial, heavy equipment, heavy-duty, transportation, and entertainment/lighting markets. The design is based on MILDTL-26482 specifications. All ecomate RM products are compatible with other industry-standard mating connectors.
