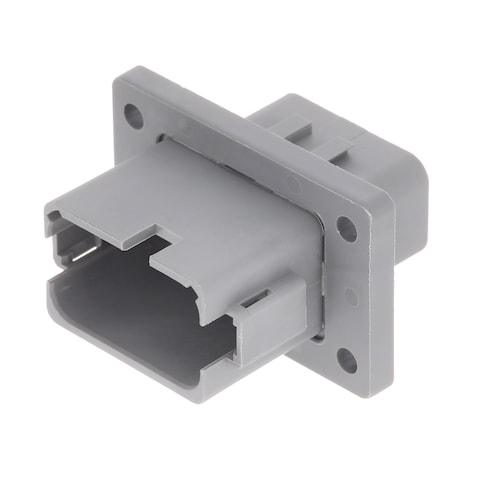

AT04-12PA-BL04

Name: Amphenol AT04-12PA-BL04
Brand: Amphenol SINE Systems
SKU: 654-AT04-12PA-BL04
Price: 8.32 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT04-12PA-BL04

Mfr. No:

AT04-12PA-BL04

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors 12 Pos Rcpt Fng Mnt Conn Pin Gry Key A

Datasheet:

AT04-12PA-BL04 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT04-12PA-BL04

In Stock: 165

Stock:: 165 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,32 €	8,32 €
	7,08 €	70,80 €
	6,64 €	132,80 €
	6,32 €	316,00 €
	6,01 €	601,00 €
	5,56 €	1.112,00 €
	5,30 €	2.650,00 €
	5,09 €	5.090,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	12 Position
Gender:	Receptacle (RP - Male)
Mounting Style:	Mounting Flange
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Gray
Series:	AT
Brand:	Amphenol SINE Systems
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Dimensions:	55.4 mm x 35.6 mm
Housing Material:	Thermoplastic (TP)
Ingress Protection:	IP67
Insulation:	Insulated
Insulation Resistance:	1 GOhms
Length:	55.4 mm
Mating Gender:	Plug
Mating Part Number:	AT06-12SXx
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	100
Subcategory:	Automotive Connectors
Tradename:	PanelMate
Voltage Rating:	250 V
Width:	35.6 mm
Wire Gauge Range:	14 AWG to 20 AWG
Part # Aliases:	04-12PA-BL04

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Product Catalogs

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
USHTS:: 8536694030
ECCN:: EAR99

A Series™ Connectors

Amphenol Sine Systems A Series™ family of sealed, heavy-duty, multi-pin plastic and metal connectors is made up of 20+ core product lines. The connectors within this family have been developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternate energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep users connected.

PanelMate™ AT/ATP Connectors

Amphenol Sine Systems AT/ATP PanelMate™ Receptacles combine flange mounting options with the proven reliability of the AT Series™ and the ATP Series™ IP68/69K rated (mated), environmentally sealed, thermoplastic connection systems. Engineered with a one-piece sealed flange design for rapid and secure mounting, the receptacles utilize a durable high-temperature silicone facial seal to provide a barrier of protection from lubricating oils, hydraulic fluids, and fossil fuels. These features allow the PanelMate™ Receptacles to withstand harsh environment applications.

BoardLock™ Connectors

Amphenol Sine Systems BoardLock™ connector family combines flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™. The A Series is an environmentally sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile, and lightweight design, this connector family is perfect for power or data signal applications. All BoardLock product lines accept A Series components and are comparable with other industry-standard mating connectors.
