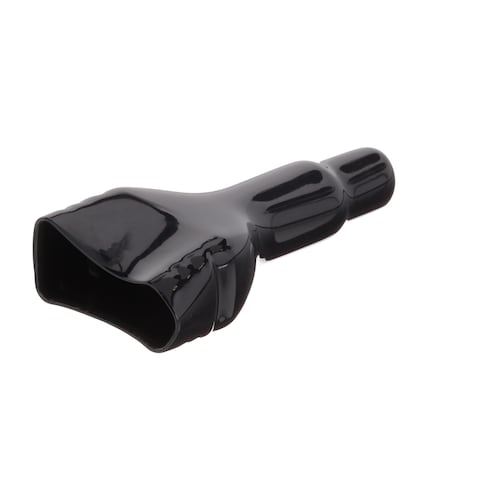

ARC24-BT

Name: Amphenol ARC24-BT
Brand: Amphenol SINE Systems
SKU: 654-ARC24-BT
Price: 2.8 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-ARC24-BT

Mfr. No:

ARC24-BT

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors 24 Position, Boot, Black (For use on both Plug and Receptacle)

Datasheet:

ARC24-BT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems ARC24-BT

In Stock: 103

Stock:: 103 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 19 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,80 €	2,80 €
	2,37 €	23,70 €
	2,12 €	53,00 €
	1,95 €	195,00 €
	1,85 €	462,50 €
	1,76 €	844,80 €
	1,61 €	1.803,20 €
	1,56 €	3.993,60 €
	1,54 €	7.884,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Accessories
Accessory Type:	Boot
Series:	ARC
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Material:	Thermoplastic (TP)
Maximum Operating Temperature:	+ 100 C
Minimum Operating Temperature:	- 29 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	160
Subcategory:	Automotive Connectors
Tradename:	ARC Series

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ARC24-BT Datasheet (PDF)

Product Catalogs

ARC Series Flyer (PDF)

This functionality requires JavaScript to be enabled.

USHTS:: 8538908180
JPHTS:: 853890000
ECCN:: EAR99

ARC Series™ Connectors

Amphenol Sine Systems ARC Series™ Connectors are rugged, environmentally sealed, rectangular connectors ideal for high pin-count applications in controlled and/or uncontrolled environmental conditions. These heavy-duty, thermoplastic connectors are available in 24, 40, 50, or 70 positions and feature bonded front seals on the plugs. The Amphenol ARC series connectors are available as in-line plugs and flange-mount receptacles with A, B, C, and D keying options. Some of the applications include transportation, agriculture, marine, alternative energy, demanding interconnect architectures, and more.
