RCP-00BMMS-TLM7001

Name: Amphenol RCP-00BMMS-TLM7001
Brand: Amphenol LTW
SKU: 523-RCP00BMMSTLM7001
Price: 4.39 EUR
Availability: InStock

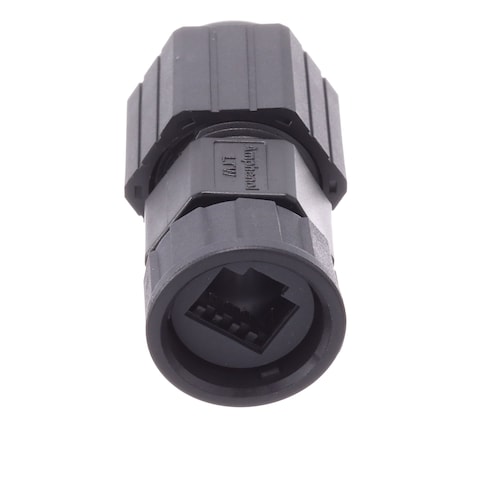

Images are for reference only
See Product Specifications

Mouser No:

523-RCP00BMMSTLM7001

Mfr. No:

RCP-00BMMS-TLM7001

Mfr.:

Amphenol LTW

Description:

Modular Connectors / Ethernet Connectors RJ, Middle Size, Plastic, 1.5A, Straight, 3 Points Lock, Feed-Thru, Field Installable, F5.0 - F6.5mm, IP67 Mated

Datasheet:

RCP-00BMMS-TLM7001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol LTW RCP-00BMMS-TLM7001

In Stock: 560

Stock:: 560 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,39 €	4,39 €
	4,13 €	41,30 €
	3,85 €	77,00 €
	3,68 €	184,00 €
	3,06 €	306,00 €
	2,98 €	596,00 €
	2,78 €	1.390,00 €
	2,72 €	2.720,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Modular Connectors / Ethernet Connectors
RoHS:
Product:	Connectors
Type:	Field
Gender:	Plug (Male)
USOC Codes:	RJ45
Configuration:	1x1
Number of Positions/Contacts per Port:	8P8C
Mounting Style:	Panel Mount
Mounting Angle:	Straight
IP Rating:	IP67
Current Rating:	1.5 A
Voltage Rating:	44 VDC to 57 VDC
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Tab Direction:	User Selectable
Series:	RJ45
Application:	1000 Base-T
Brand:	Amphenol LTW
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94V-0
Insulation Resistance:	500 MOhms
Locking Mechanism:	Three Points Lock
Number of Contacts:	8 Contact
Number of Ports:	1 Port
Number of Positions:	8 Position
Operating Temperature Range:	- 40 C to + 105 C
Product Type:	Modular Connectors / Ethernet Connectors
Factory Pack Quantity:	10
Subcategory:	Modular Connectors / Ethernet Connectors
Unit Weight:	27,692 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

RCP-00BMMS-TLM7001 Datasheet (PDF)

Product Catalogs

Waterproof Solution IP 67 (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Rugged Ethernet Solutions

Amphenol Socapex RJ Field Bus Interconnect System allows users to quickly and reliably transform standard telecommunications and data communication mediums into rugged, military, and industrial connectors for harsh environments. This rugged Ethernet series offers a wide range of options for flexibility, including reverse bayonet, push/pull, bayonet, threaded, and lever coupling configurations in both plastic and metal materials. The enables designers to choose the best solution for their application.

RJ45 High-Speed Modular Connectors

Amphenol LTW RJ45 High-Speed Modular Connectors offer transmission speeds up to Cat 6A (10Gbps) and an IP67 mated or unmated protection rating. These connectors support 2 points lock, 3 points lock, and screw thread options and have a flammability rating of UL 94V-0. Amphenol LTW RJ connectors are suitable for a wide range of applications, including LED lighting, renewable energy, heavy equipment, hybrid electric vehicles, and broadband wireless access.

RJ45 Modular / Ethernet Connectors

Amphenol LTW RJ45 Modular / Ethernet Connectors are waterproof IP67 rated connectors that are constructed with a black nylon66 housings and grey silicon gaskets. These RJ45 connectors feature a temperature rating of -40ºC ~ +105ºC, a contact resistance of ≤20mΩ, and an insulation resistance of ≥500mΩ at DC500V.
