AG3MCCH

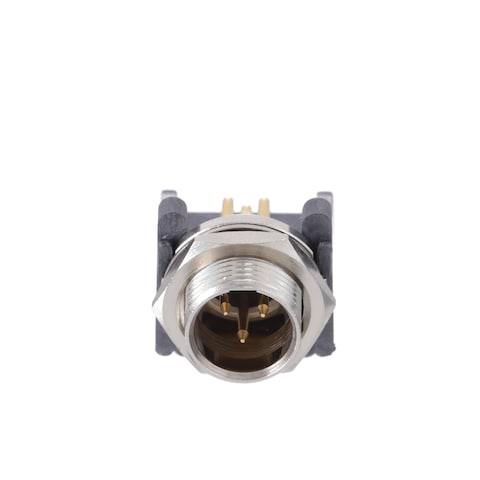

Name: Amphenol AG3MCCH
Brand: Amphenol Audio
SKU: 523-AG3MCCH
Price: 8.76 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-AG3MCCH

Mfr. No:

AG3MCCH

Mfr.:

Amphenol Audio

Description:

XLR Connectors 3 Pole Mini XLR Chassis Mount G Type Male Contacts Horizontal PCB Nickel Finish

Datasheet:

AG3MCCH Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Audio AG3MCCH

In Stock: 833

Stock:: 833 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,76 €	8,76 €
	7,86 €	78,60 €
	7,37 €	147,40 €
	7,02 €	351,00 €
	6,67 €	667,00 €
	6,24 €	1.248,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	XLR Connectors
RoHS:
Product:	Miniature XLR Connector
Standard:	Mini (Tiny) XLR
Number of Positions:	3 Position
Gender:	Male
Termination Style:	Solder Cup
Mounting Style:	Chassis Mount
Contact Plating:	Gold
Orientation:	Straight
Series:	Mini XLR, G TYPE
Brand:	Amphenol Audio
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	5 A
Mating Cycles:	5000 Cycle
Packaging:	Bulk
Product Type:	XLR Connectors
Shell Plating:	Nickel
Factory Pack Quantity:	100
Subcategory:	Audio & Video Connectors
Voltage Rating:	50 V
Unit Weight:	10,117 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85369099
BRHTS:: 85366990
ECCN:: EAR99

G-Type Miniature XLR Connectors

Amphenol Audio G-Type Miniature XLR Connectors offer 3-, 4-, 5-, and 6-pole variations and male and female connectors. These connectors are a miniature version of the standard XLR series and feature diecast or precision-machined metal housings. Miniature XLR connectors are designed with stamped socket contacts, a positive latch lock, a flexible cable grommet, and metal cable clamps. Amphenol Audio G-Type Miniature XLR Connectors are available with solder cup or printed circuit board (PCB) contacts.
