330224

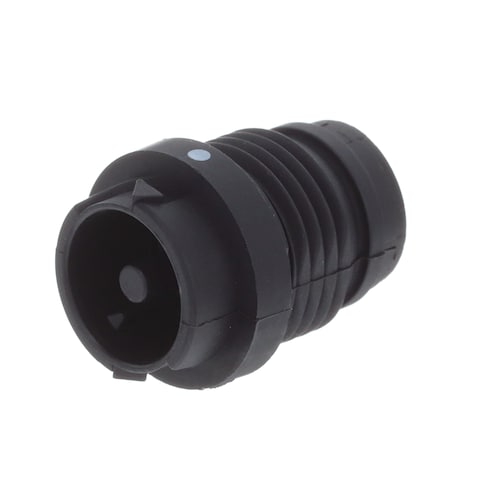

Name: Amphenol 330224
Brand: Amphenol Alden Products
SKU: 523-330224
Price: 17.32 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-330224

Mfr. No:

330224

Mfr.:

Amphenol Alden Products

Description:

Circular Push Pull Connectors Fr Pnl Mnt PCB Tail Kit Pnl Mnt 2P 22AWG

Datasheet:

330224 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Alden Products 330224

In Stock: 5

Stock:: 5 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	17,32 €	17,32 €
	14,72 €	147,20 €
	13,80 €	345,00 €
	13,14 €	657,00 €
	12,70 €	1.270,00 €
	12,00 €	3.000,00 €
	11,65 €	5.825,00 €
2.500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Circular Push Pull Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
Connector Type:	Receptacle
Contact Gender:	Socket (Female)
Number of Contacts:	2 Contact
Mounting Style:	PCB Mount
Termination Style:	SMD
IP Rating:	IP67
Series:	PL-700SM-N
Brand:	Amphenol Alden Products
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	3 A
Product Type:	Circular Push Pull Connectors
Subcategory:	Circular Connectors
Tradename:	Pulse-Lok
Voltage Rating:	300 V
Wire Gauge:	22 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

330224 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Pulse-Lok® Connectors

Amphenol Alden Pulse-Lok^® Connectors feature a unique locking system with visual, audible, and tactile engagement confirmation. These connectors are robustly constructed to endure thousands of mating cycles and offer a quick release action. The Pulse-Lok connectors are available in different contact types, including signal, power, high voltage, and ethernet. These connectors feature up to 78 conductors in a small package (ø0.5" to ø1.2") and offer Electro Magnetic Interference (EMI) shielding. The Pulse-Lok connectors are suited for medical, factory automation, and instrumentation field applications.

PL-700SM-N Auto-Coupling Pulse-Lok® Connectors

Amphenol Alden PL-700SM-N Auto-Coupling Pulse-Lok® Connectors are plastic shelled connectors with Press and Seal™ self-sealing contacts and backshell. These connectors feature Pulse-Lok auto-latch and mating confirmation. The PL-700SM-N connectors, offering up to 27 contact positions, withstand a minimum of 5000 mating cycles. These connectors feature thermoplastic connector housings and rubber flex reliefs. The PL-700SM-N connectors are water-proof and operate in a temperature range from -20°C to +105°C. The Amphenol Alden PL-700SM-N Auto-Coupling Pulse-Lok® Connectors withstand steam, gamma, and Ethylene Oxide (EtO) sterilization methods.
