320455

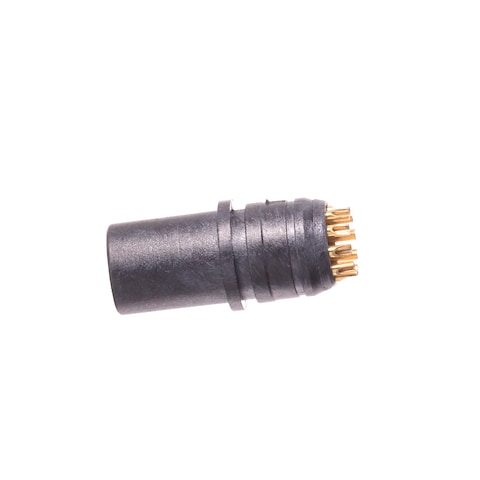

Name: Amphenol 320455
Brand: Amphenol Alden Products
SKU: 523-320455
Price: 37.06 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-320455

Mfr. No:

320455

Mfr.:

Amphenol Alden Products

Description:

Circular Push Pull Connectors R Pnl Mnt Solder Cup 10 Pole 26 AWG

Datasheet:

320455 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Alden Products 320455

In Stock: 8

Stock:: 8 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	37,06 €	37,06 €
	32,22 €	322,20 €
	30,82 €	770,50 €
	29,83 €	1.491,50 €
	28,84 €	2.884,00 €
	27,24 €	6.810,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Circular Push Pull Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
Connector Type:	Receptacle
Contact Gender:	Socket (Female)
Number of Contacts:	10 Contact
Mounting Style:	Panel Mount
Termination Style:	Solder Cup
IP Rating:	IP67
Series:	PL-500SM-N
Brand:	Amphenol Alden Products
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	1 A
Product Type:	Circular Push Pull Connectors
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Tradename:	Pulse-Lok
Voltage Rating:	300 V
Wire Gauge:	26 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

320455 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Pulse-Lok® Connectors

Amphenol Alden Pulse-Lok^® Connectors feature a unique locking system with visual, audible, and tactile engagement confirmation. These connectors are robustly constructed to endure thousands of mating cycles and offer a quick release action. The Pulse-Lok connectors are available in different contact types, including signal, power, high voltage, and ethernet. These connectors feature up to 78 conductors in a small package (ø0.5" to ø1.2") and offer Electro Magnetic Interference (EMI) shielding. The Pulse-Lok connectors are suited for medical, factory automation, and instrumentation field applications.

PL-500SM-N Auto-Coupling Pulse-Lok® Connectors

Amphenol Alden PL-500SM-N Auto-Coupling Pulse-Lok® Connectors are plastic shell auto-coupling connectors that meet the efficient packaging demands of portable electronic devices with a compact design. These connectors, offering up to 14 contact positions, feature Pulse-Lok auto-latch and mating confirmation. The PL-500SM-N connectors offer a miniature ø0.520" circular shell and withstand a minimum of 5000 mating cycles with standard contacts. These connectors are water-proof and operate at a temperature range of -20°C to +85°C. The Amphenol Alden PL-500SM-N Pulse-Lok Connectors can be sterilized by steam sterilization, gamma sterilization, and Ethylene Oxide (EtO) sterilization methods.
